Lewis LHT and LHP-U4+ Parts

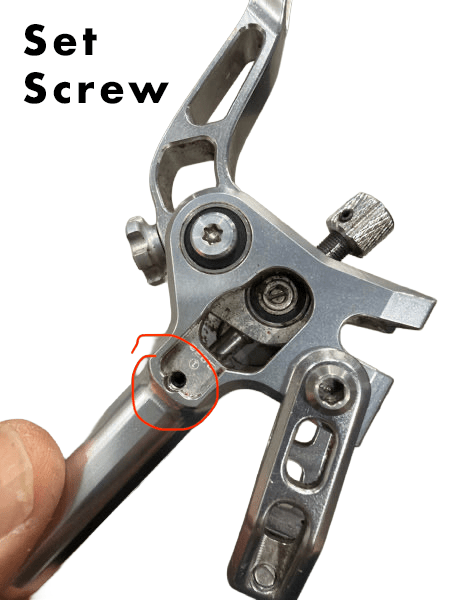

The new A1 service kit uses a set screw to hold the piston sleeve. The old service kit uses a circlip to hold the piston sleeve.

Rebuild video for set screw version

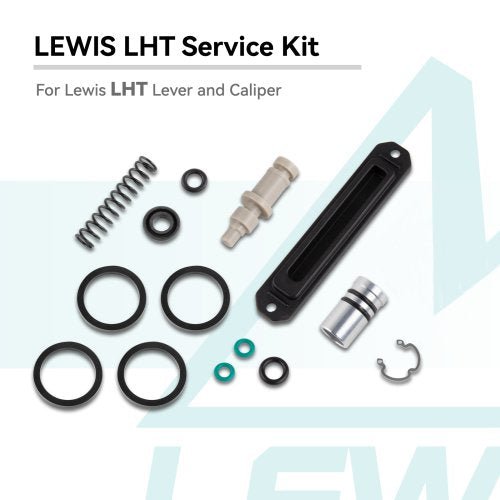

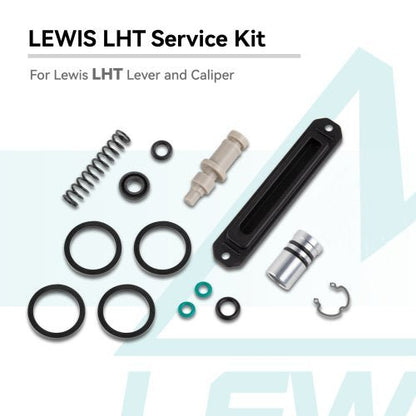

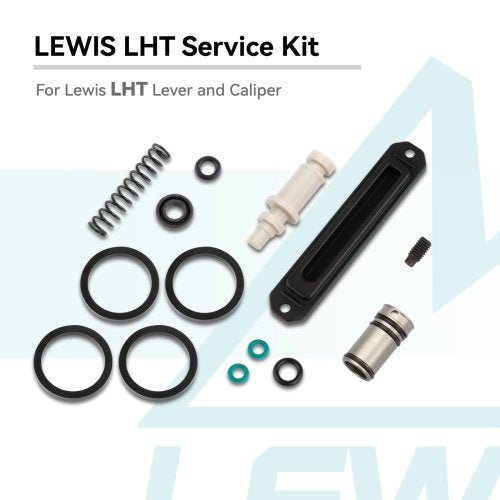

Service Kit for LHT Lever and Caliper

• diaphragm
• piston
• front o-ring
• o-ring
• oil port o-ring (2)
• lever piston spring
• caliper piston o-ring (4)
• piston sleeve
• grub screw
• o-ring between caliper clamshells
