Shimano K and L Pads (2 Piston Road) - CMH Uniblock Brake Bleeding and Maintenance System

Shimano K and L Pads (2 Piston Road) - CMH Uniblock Brake Bleeding and Maintenance System

Regular price $29.95 CAD
Regular price Sale price $29.95 CAD
Sale Sold out
Shipping calculated at checkout.
Brake Caliper Model

The Ultimate Bleed Block For Your Disc Brakes —perfect for cleaning caliper pistons and bleeding brakes.

Description

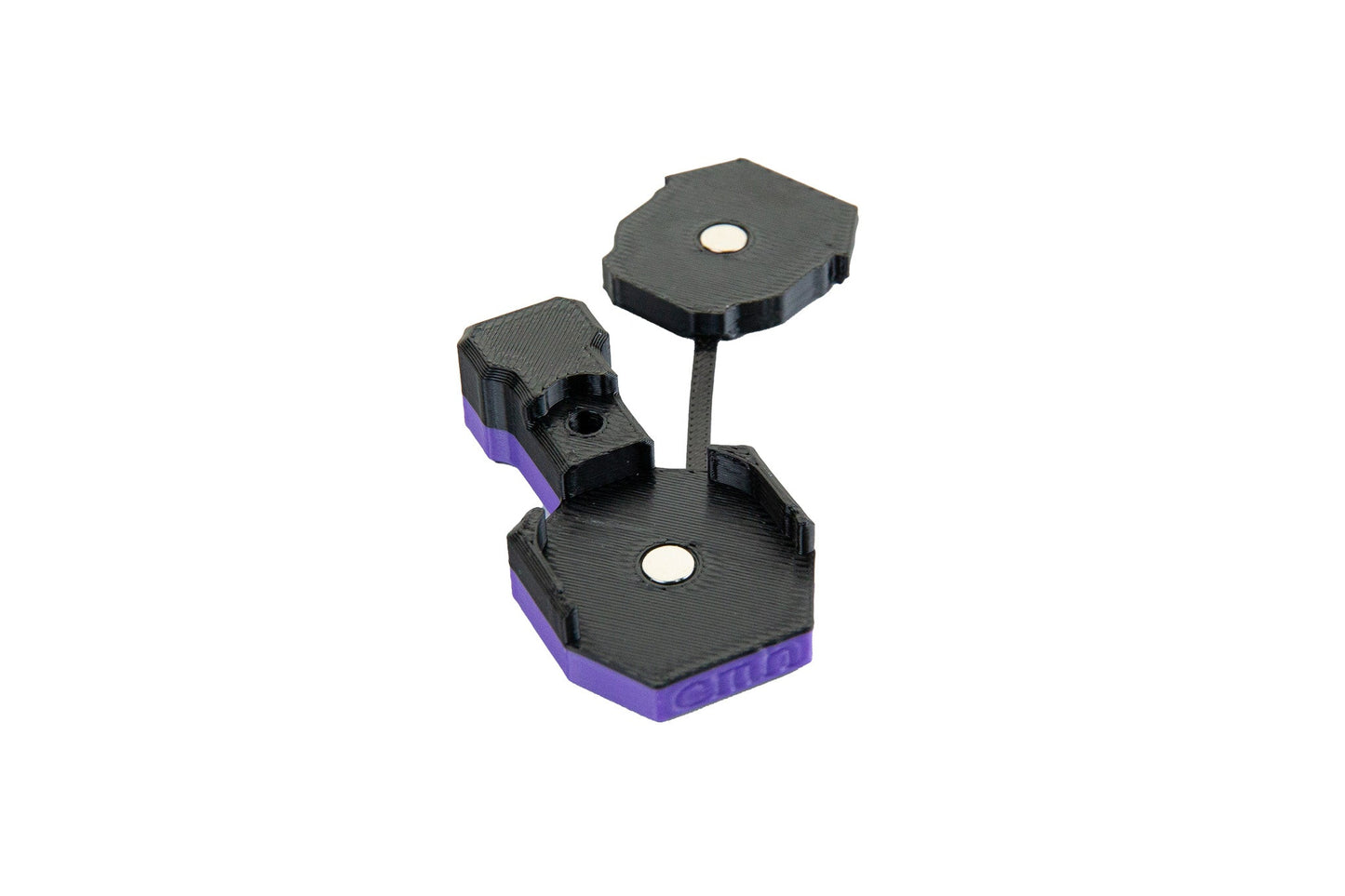

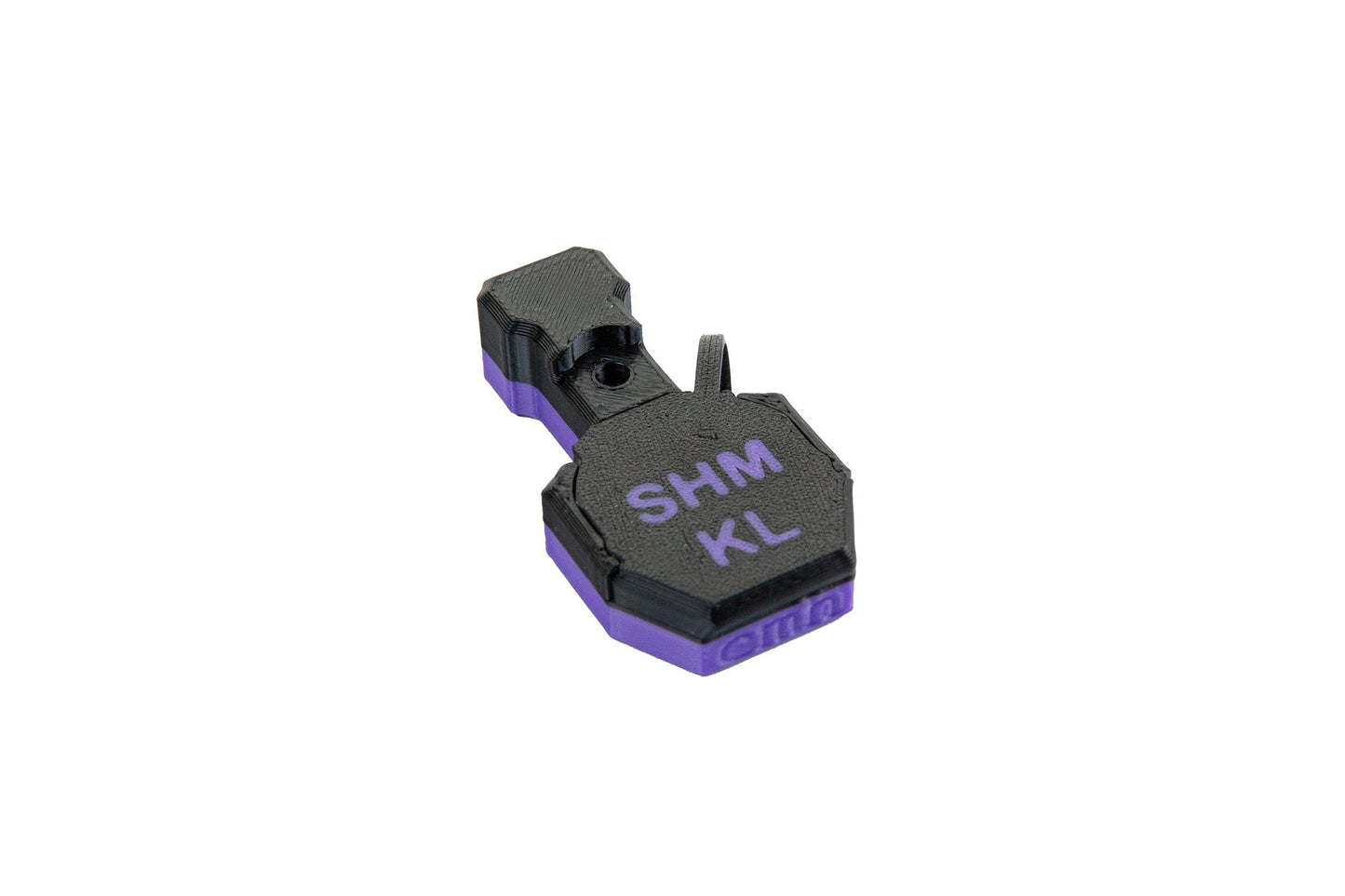

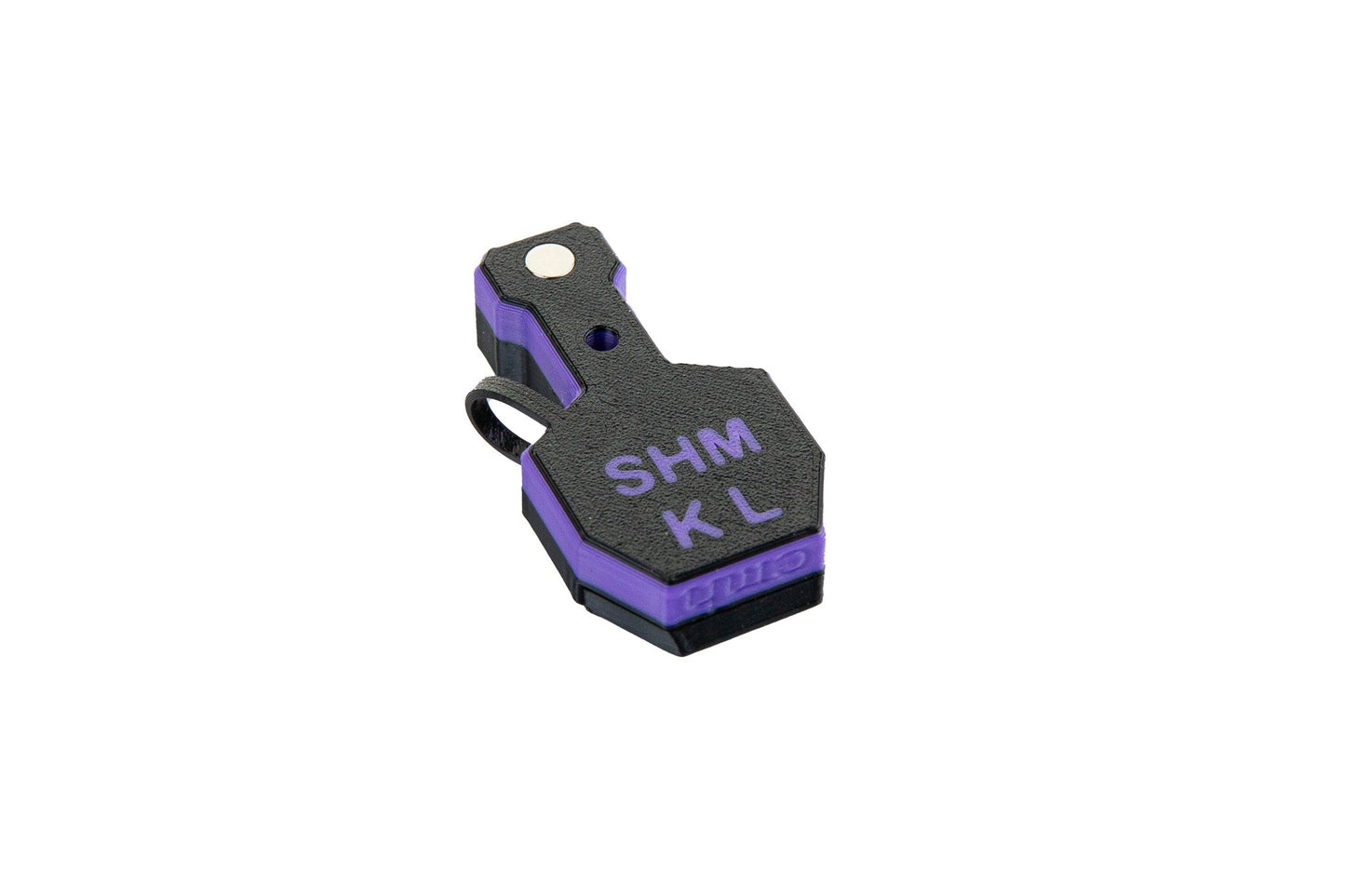

One brake block to do all the maintenance tasks on a brake disc caliper. Bleed and piston exposure all wrapped up into one versatile tool. Loads from the top of the caliper and keeps itself in place - no need for the pad retainer pin unless you flip the caliper upside down. This makes service faster and easier.

Use

For bleeding, leave the filler block in place. For piston exposure, flip out the filler, put the block into the caliper, and pump the brake until the piston stops against the step. The filler block is tethered to the main block so you don't have to worry about losing it.

Important: We recommend, for Shimano, using alcohol to clean the piston and following up with mineral oil on the side before pushing it back in with the CMH Piston Spreader.

For 2-piston calipers, push back one piston using the CMH Piston Spreader. Flip the block, reinstall it, and repeat the process for the opposite side.

Compatibility

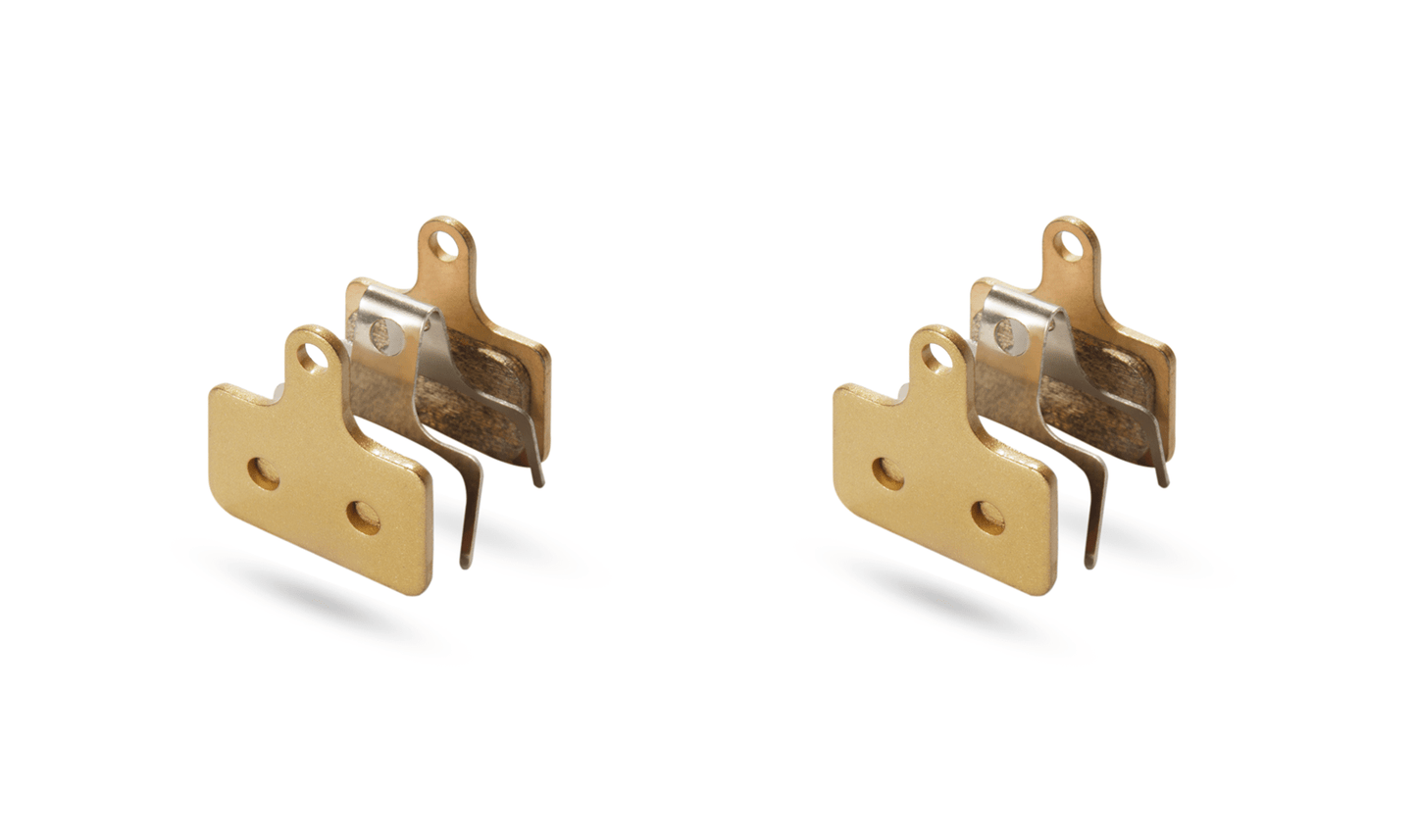

  • Shimano K or L type pads
  • Compatible Models:
    BR-M9100, BR-M9110, BR-M8110, BR-R9270, BR-R8170, BR-R7170, BR-R9170-F, BR-R9170-R, BR-R8070-F, BR-R8070-R, BR-R7070-F, BR-R7070-R, BR-4770-F, BR-4770-R, BR-RS805-F, BR-RS805-R, BR-RS505-F, BR-RS505-R, BR-RS405-F, BR-RS405-R, BR-RS305-F, BR-RS305-R, BR-U5000, BR-RX810-F, BR-RX810-R, BR-RX400-F, BR-RX400-R

  • Compatible Series:
    XTR M9100 Series, DEORE XT M8100 Series, DURA-ACE R9150 Series, ULTEGRA R8050 Series, SHIMANO 105 R7100 Di2 Series, SHIMANO 105 R7000 Series, TIAGRA 4700 Series, METREA U5000 Series, GRX 11-speed, GRX 10-speed, CYCLOCROSS / ON-ROAD DISC BRAKE, SHIMANO
