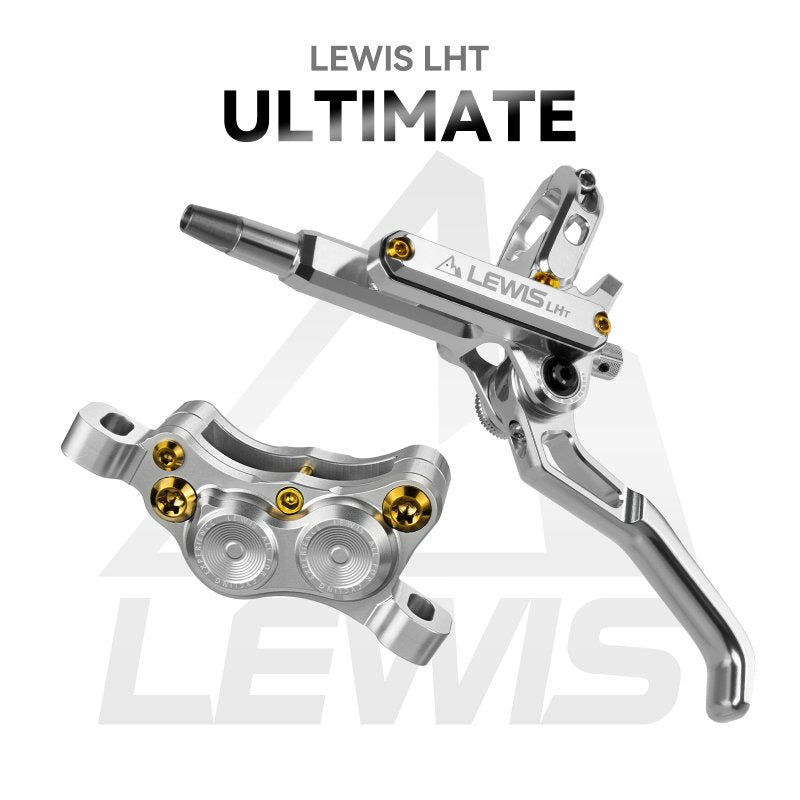

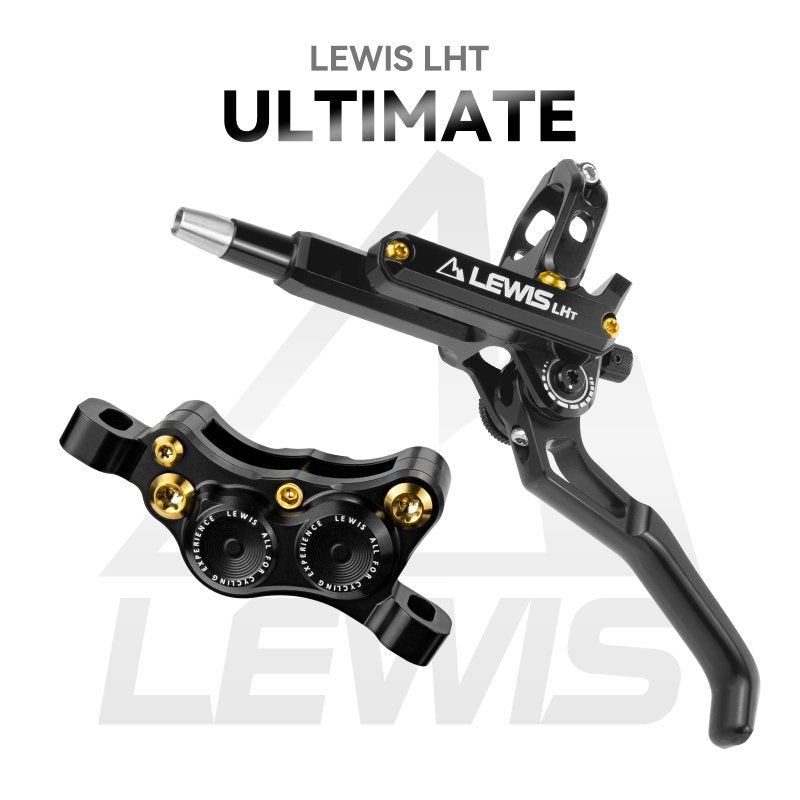

Lewis LHT Ultimate 4-Piston Disc Brake Set | Front and Rear

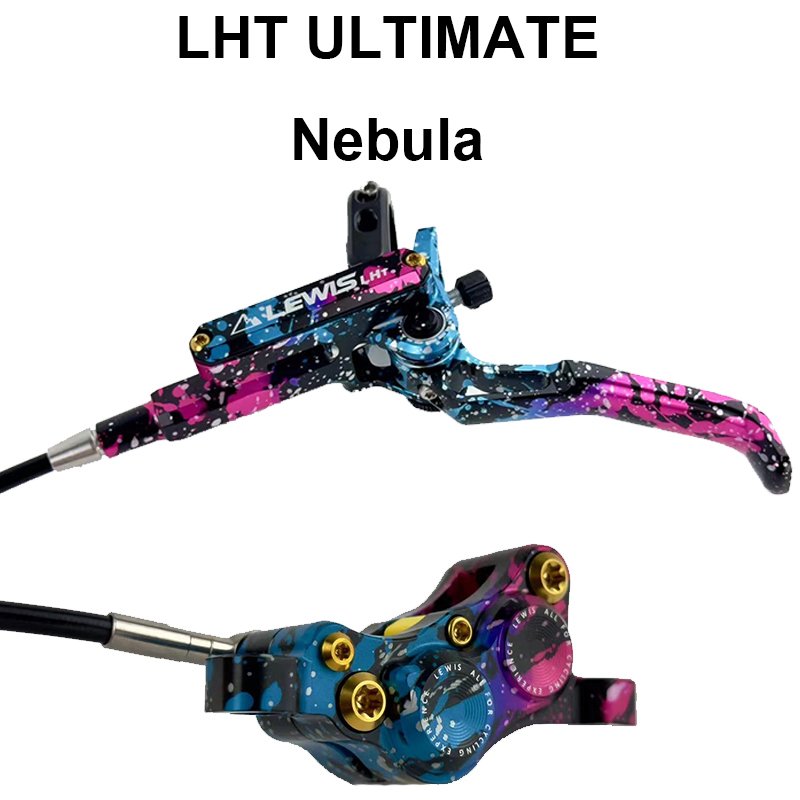

Nebula colour way is special order. Silver and black is in stock and ready to ship.

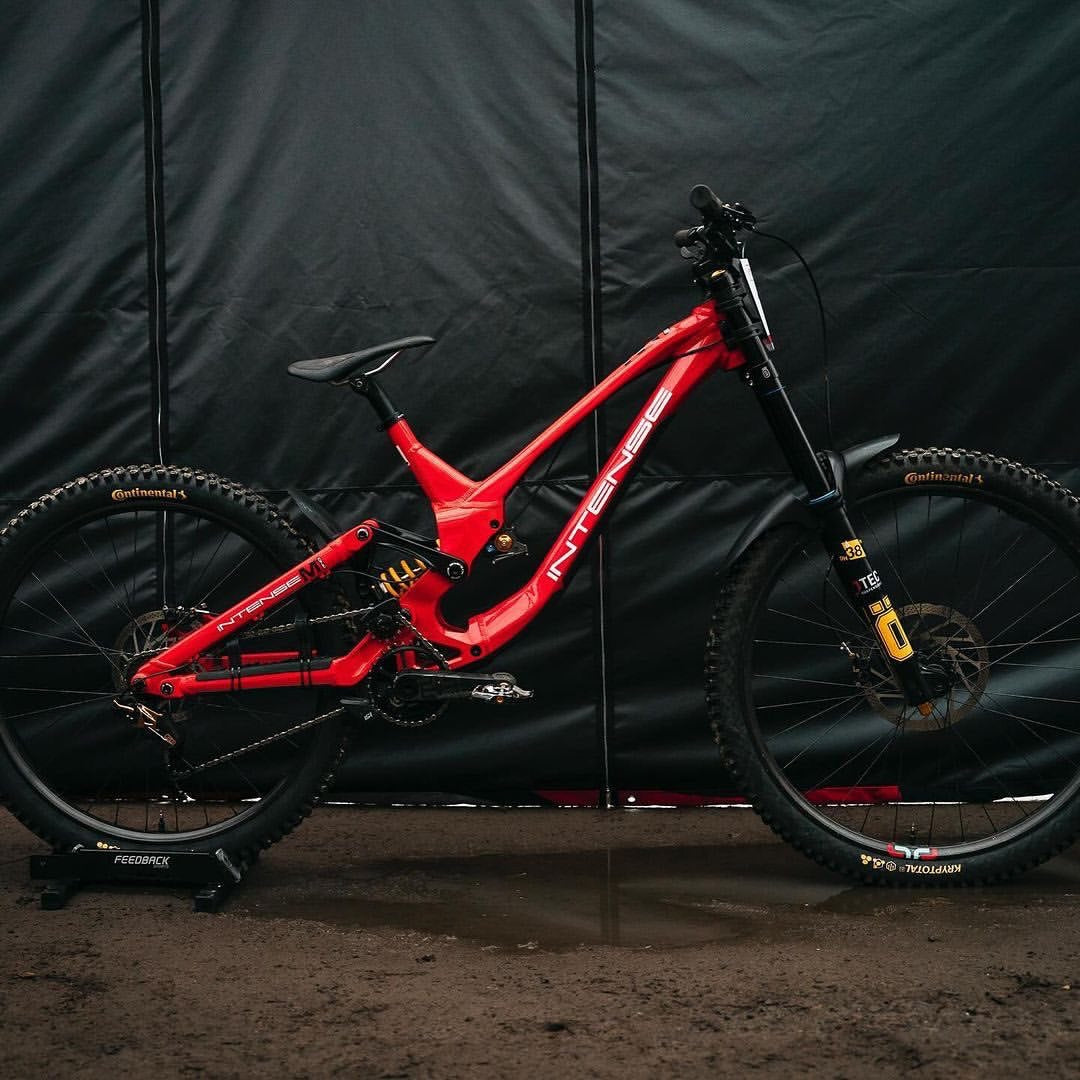

The Lewis LHT Ultimate 4-Piston Disc Brakes are LEWIS’s premium braking system, brimming with innovation and patented technology and delivering the highest level of adjustability and performance. Used by the Intense Racing Factory Team in 2024.

The LHT Ultimate feature a Lever Ratio Adjustment in addition to Lever Reach and Bite Point adjustments, making it the only system to offer three levels of fine-tuning. By adjusting the leverage applied to the pistons, you can tailor both power and lever pitch to your exact preference.

But that’s not all. Lewis also equipped the LHT Ultimate with titanium bolts and pistons, adding an eye-catching finish while offering superior strength and a lower coefficient of thermal expansion compared to steel. To top it off, the Lewis LHT Ultimate boast bigger pistons and an increased leverage ratio, translating to even more power. The titanium parts save 39 grams compared to their stainless steel equivalents and look undeniably trick.

Each set comes fully sealed and ready to ride, using custom LP/TP-40 brake pads and a new K28 Kevlar-braided hoses (165cm rear, 90cm front). Experience next-level braking with the Lewis LHT Ultimate.

• Usage: Downhill, Enduro & All-Mountain
• Patented Triple Adjustments Technology for Leverage Ratio & Lever Reach & Bite Point.
• Material: Hight Precision Machined 7075 T6 Aluminum

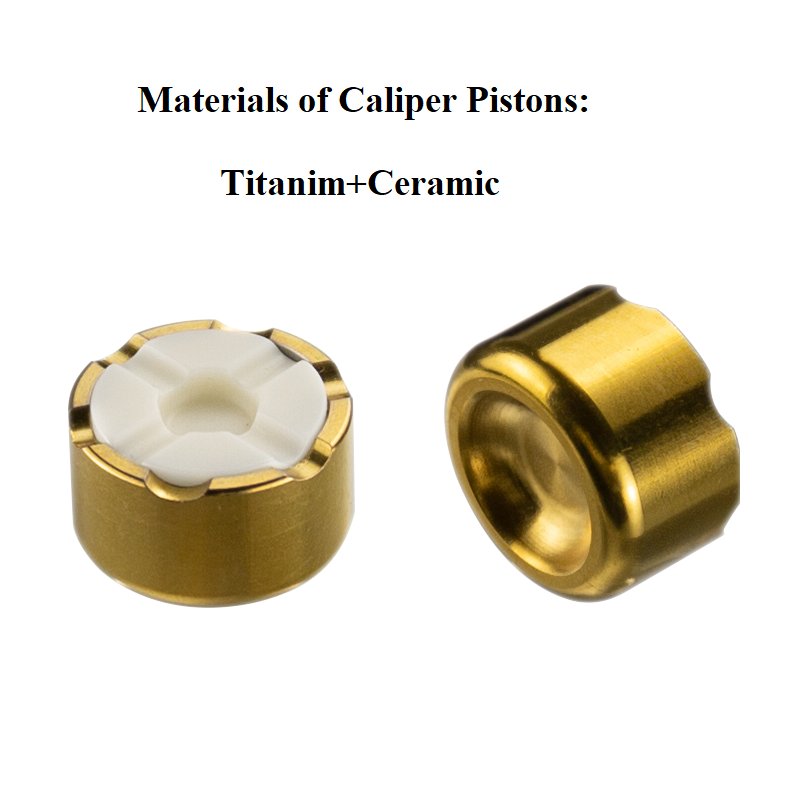

• Pistons: 4x17mm Titanium+Ceramic pistons
• Mineral Oil
• Ultra light lever action, Powerful but predictable braking force
• Independent cooling fins design for better high temperature performance
• Bearing pivots provide superior modulation and feel
• Front+Rear Brakes weight = 639g (Hoses included)

• Weight: complete front and rear set - 639g
• Brake Pad - Lewis LP-40 & TP-40
• Oil Type - Mineral oil
• Rotors size - compatible with 140 mm | 160 mm | 180 mm | 203 mm | 223 mm

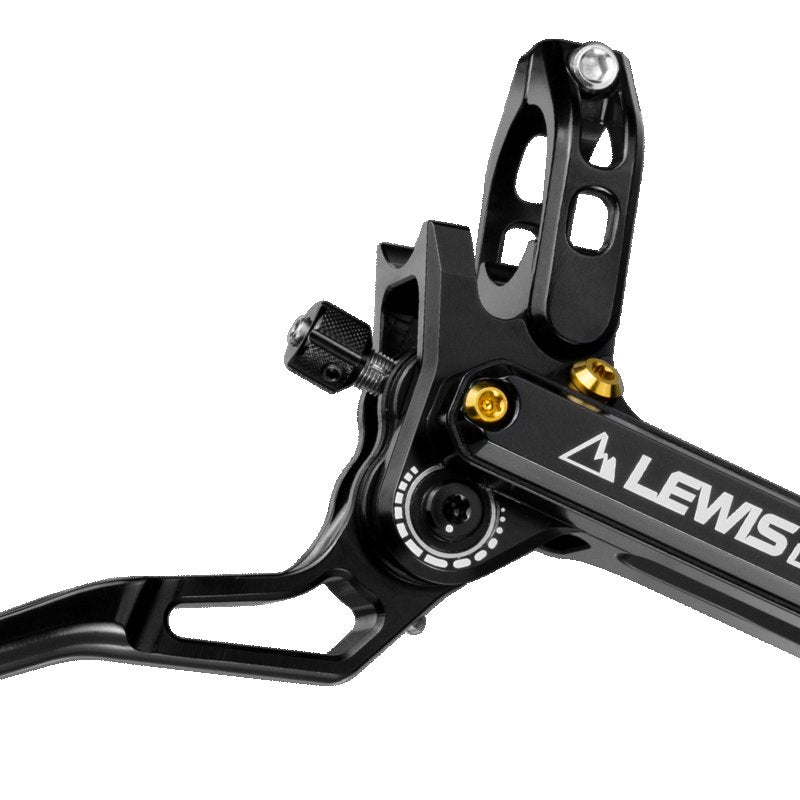

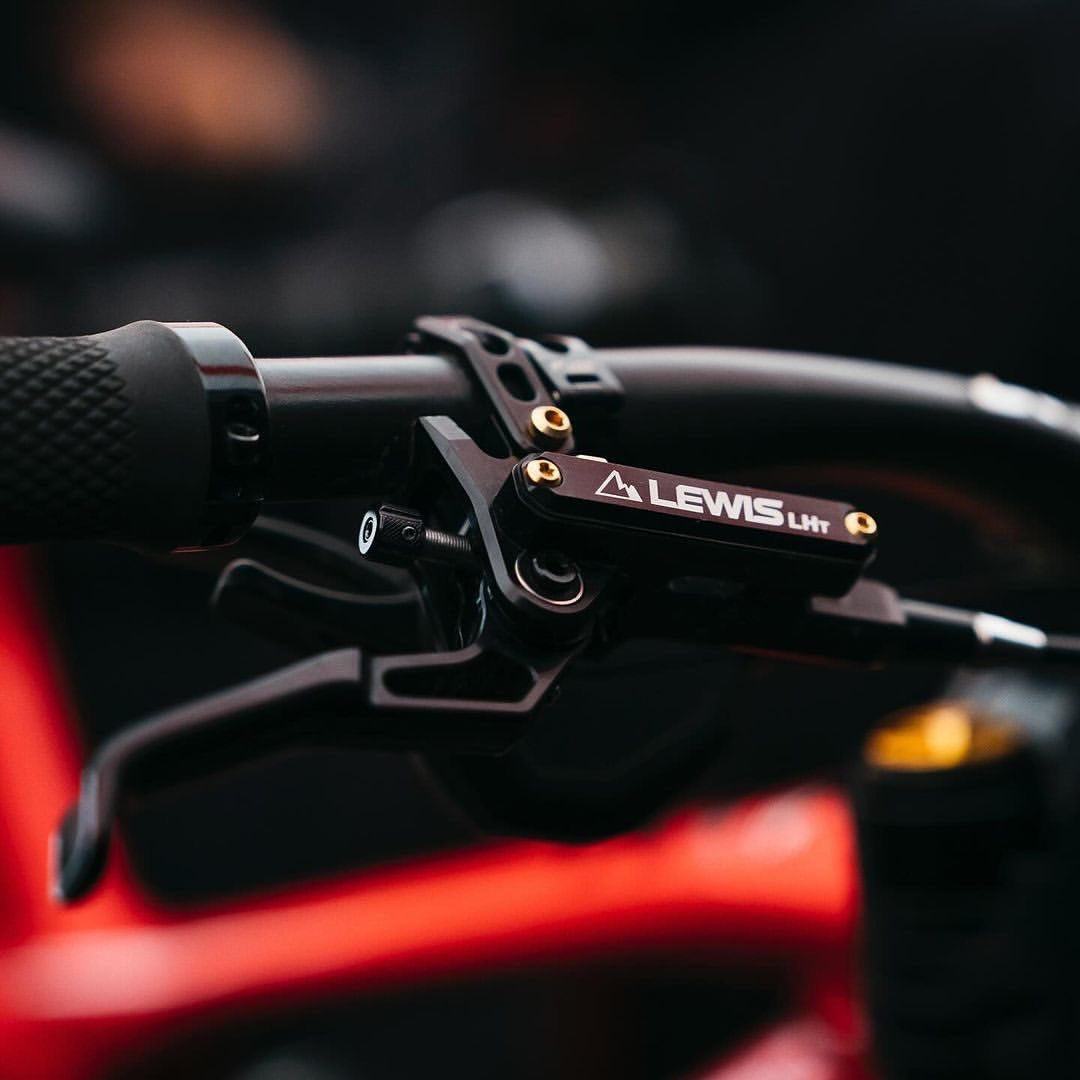

Lever Body

• CNC 7075-T6 Aluminium
• Body Finish - Black, Silver
• Clamp Color - Black, Silver
• Clamp Type - Hinged
• Screws - Titanium
• Adjustable lever ratio - with 2mm Allen key
• Adjustable lever reach - external dial, tool free
• Adjustable bite point - with 2mm Allen key (special tool provided)

Lever

• Material CNC 7075-T6 Aluminum
• Colors - Black, Silver
• Type - 1 or 2 Fingers

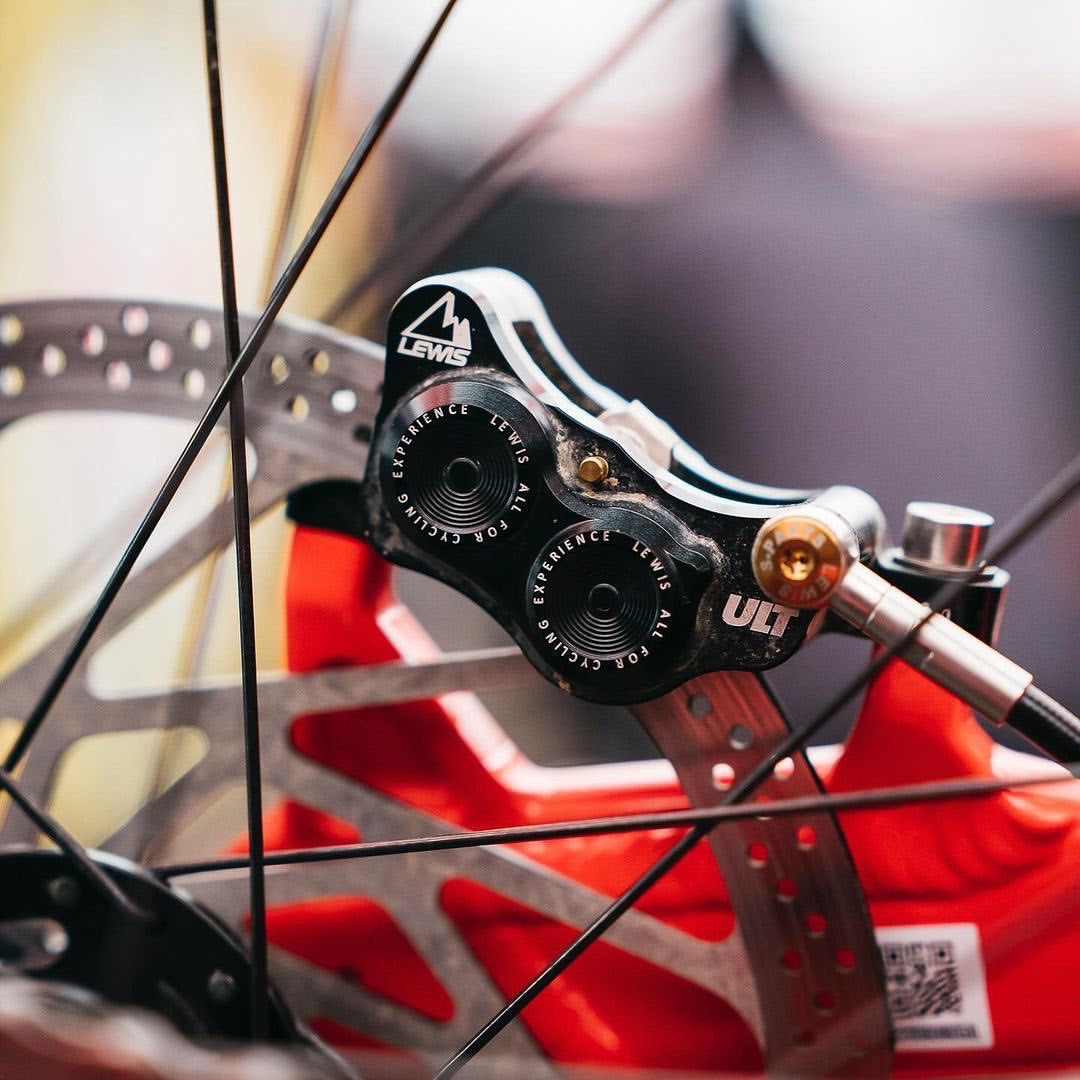

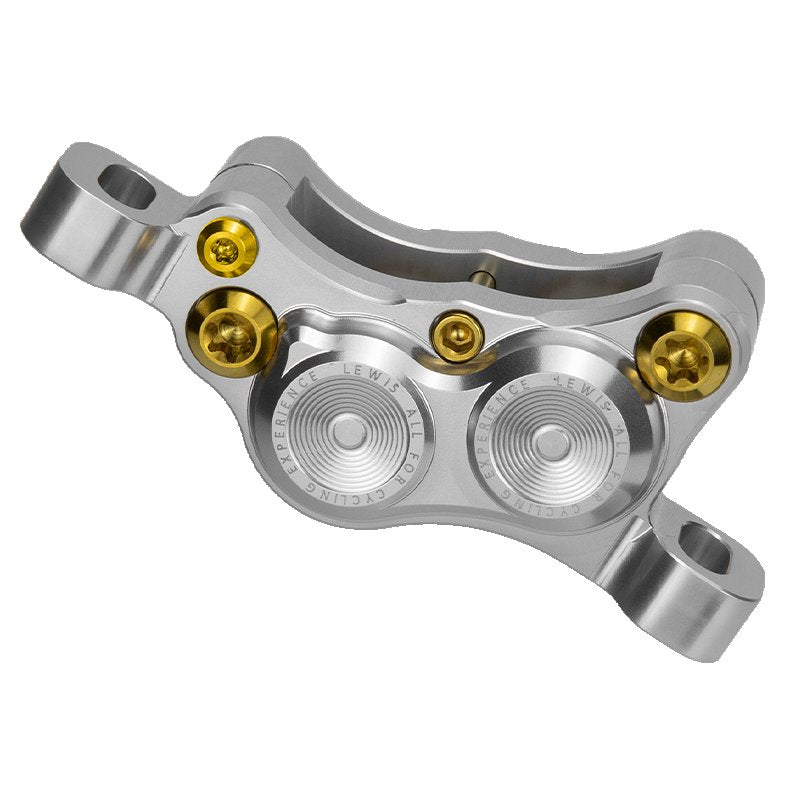

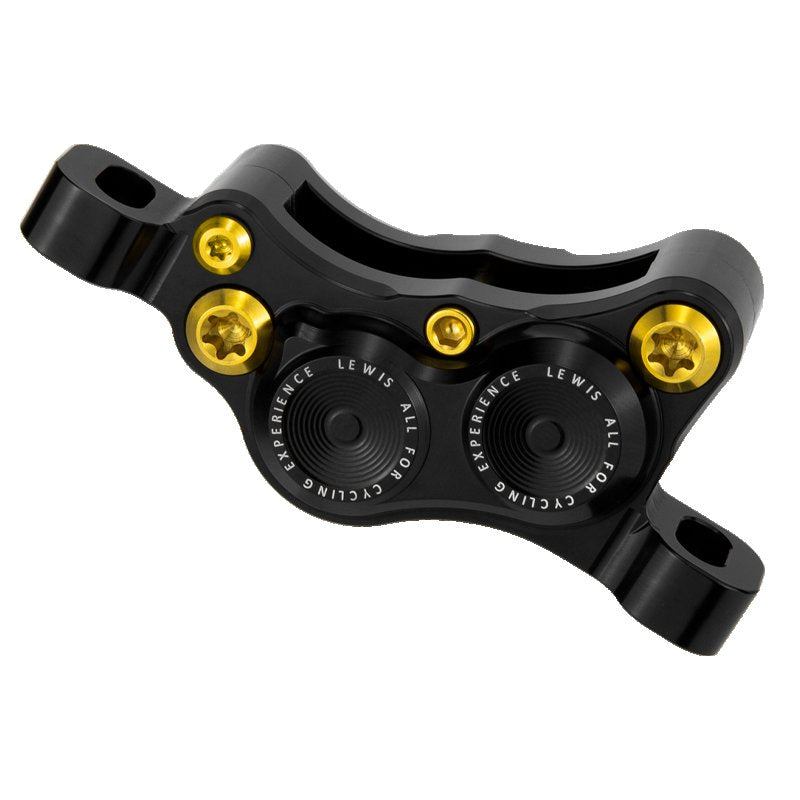

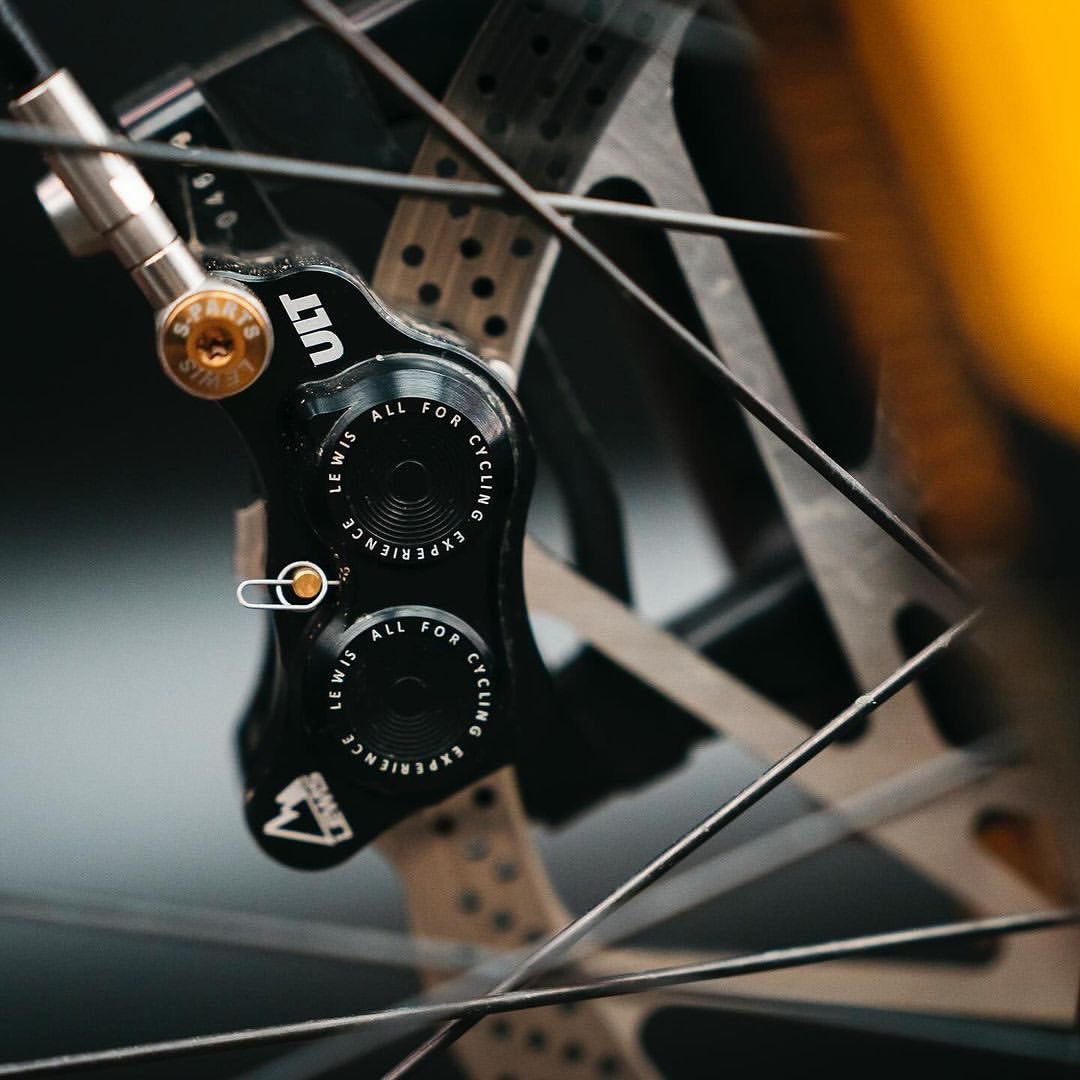

Caliper

• Material - CNC 7075T6  Black, Silver
• Post mount
• Pistons - 4x17mm Titanium+Ceramic pistons
• Bolts - Titanium

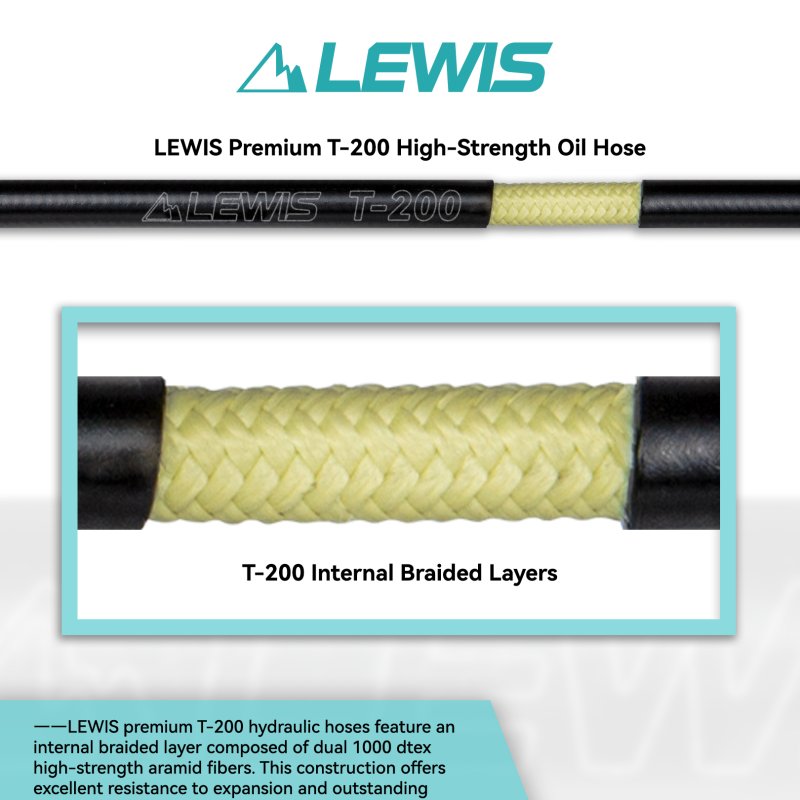

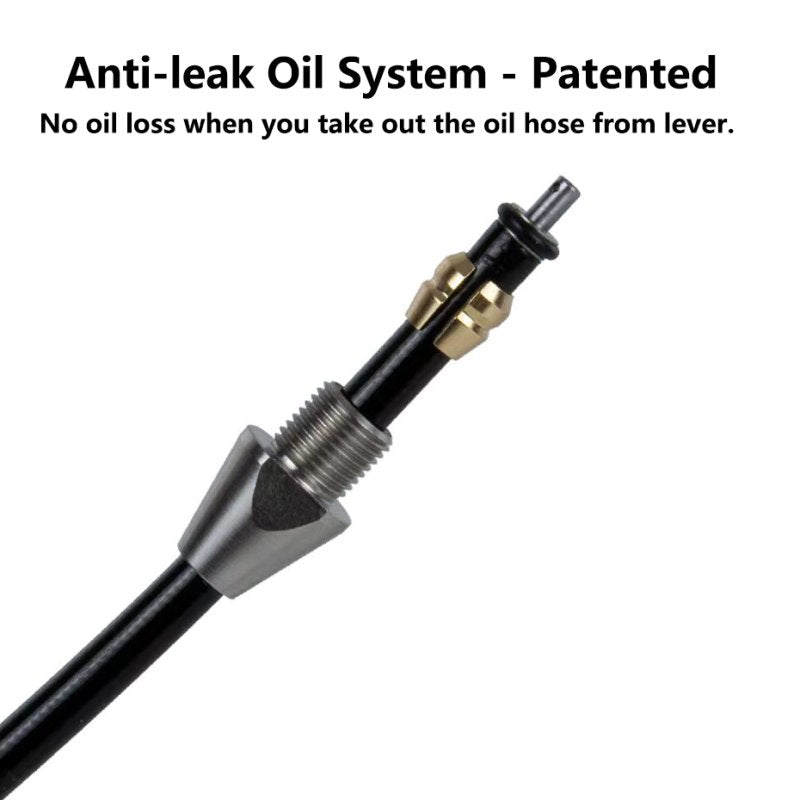

Hose

•  Outside Diameter 5mm，Bore 2.2mm
• Hose length: 90cm front / 165 cm rear
• Hose - finish Silver, Braided

• 3 year warranty from manufacturing defects when purchased from us
• We also stock spare parts HERE to get you back on the trail ASAP

Lewis LHT User Manual
