Lewis LHP+ U4T 4 Pistons Disc Brake Set with Ti Mounting Bolts | Front and Rear

Name: Lewis LHP+ U4T 4 Pistons Disc Brake Set with Ti Mounting Bolts | Front and Rear
Brand: Lewis
SKU: LW-BR-LHPU4-TI-BK
Price: 768.00 CAD
Availability: InStock

$768.00 CAD

Sale Sold out

Color: Black

1 6

Lewis

Lewis LHP+ U4T 4 Pistons Disc Brake Set with Ti Mounting Bolts | Front and Rear

$768.00 CAD

Sale Sold out

Shipping calculated at checkout.

Color: Black

Quantity

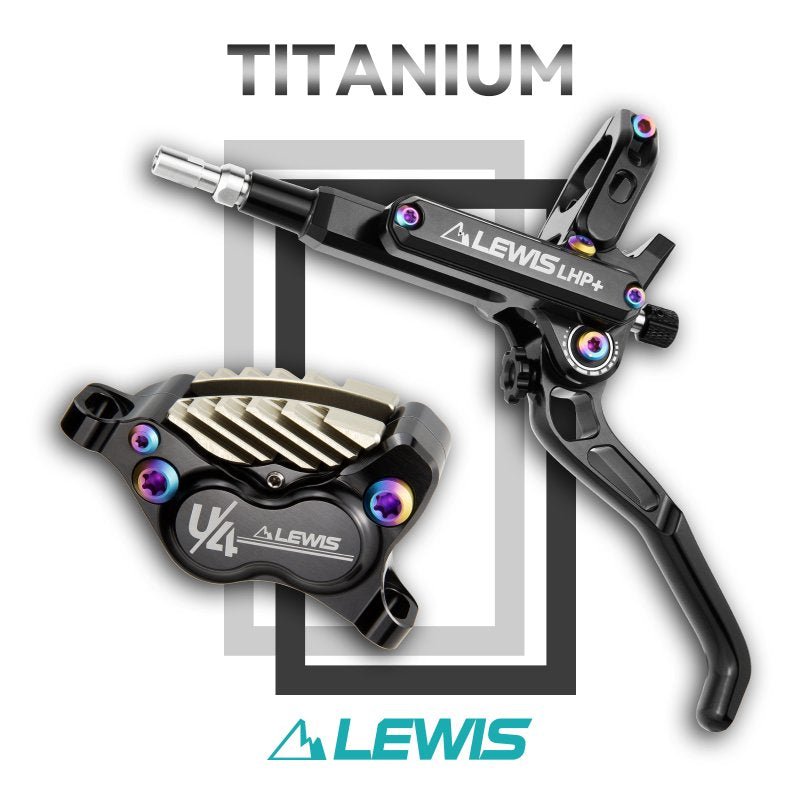

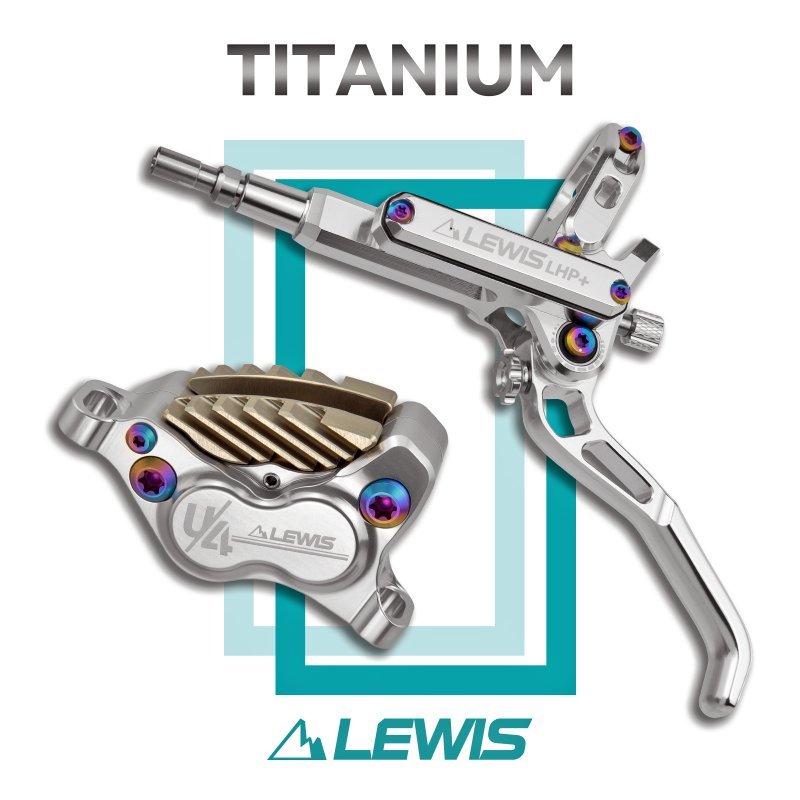

Introducing the Lewis LHP U4 4-piston brakes with titanium mounting bolts, refined to deliver even greater performance while delivering all key features riders want and love. The LHP lever retains the popular reach and bite point adjustments from the LH4 and LHT brakes, offering unparalleled customization. The bite point adjuster, praised for its exceptional range, remains unmatched in the market. If purchased through us, we offer a 3 year warranty standard warranty that covers manufacturer defects. If you crash, it's not covered by warranty, BUT we carry spares like levers and other parts to get you back on the trail ASAP.

The Ratio adjustment has also been simplified for a more user-friendly experience, ensuring effortless setup and control.

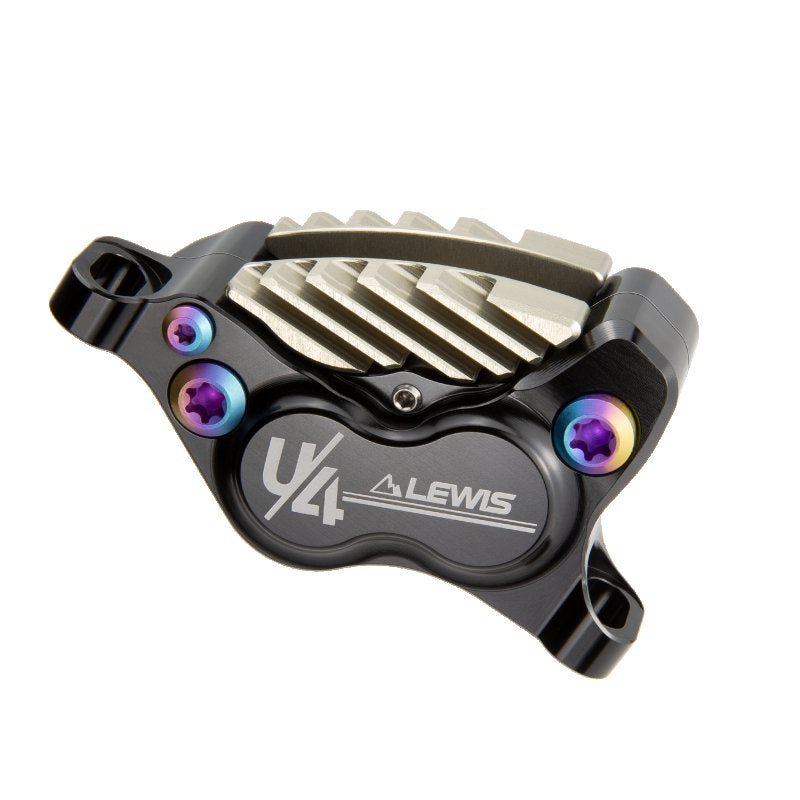

The calipers feature enhanced heat dissipation with newly added brake pad fins. These fins are separate from the brake pads, meaning you don’t need to replace them with every pad change, offering convenience and cost-efficiency.

Additionally, the brakes come with no-leak hose connectors and are pre-configured as Right Front/Left Rear. Switching to Right Rear/Left Front can easily be done at home without the need to bleed the brakes. The LHP series delivers performance, precision, and ease of use, all in one package.

Features

Usage: Downhill & Enduro
Material: 7075 T6 Aluminum
Pistons: 4 pistons (4x17mm)
Mineral Oil
Three Adjustments For LEVER REACH & BITE POINT & LEVERAGE RATIO
Independent cooling fins design for better high temperature performance
Removable Olives used in Anti-oil loss system connector
Upgraded leverage ratio adjustment knob

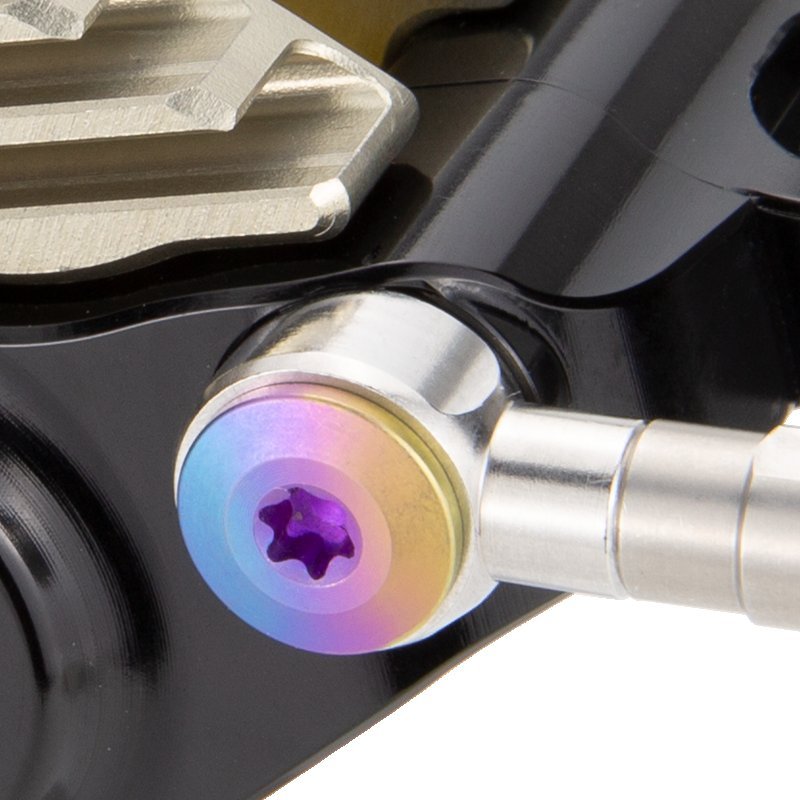

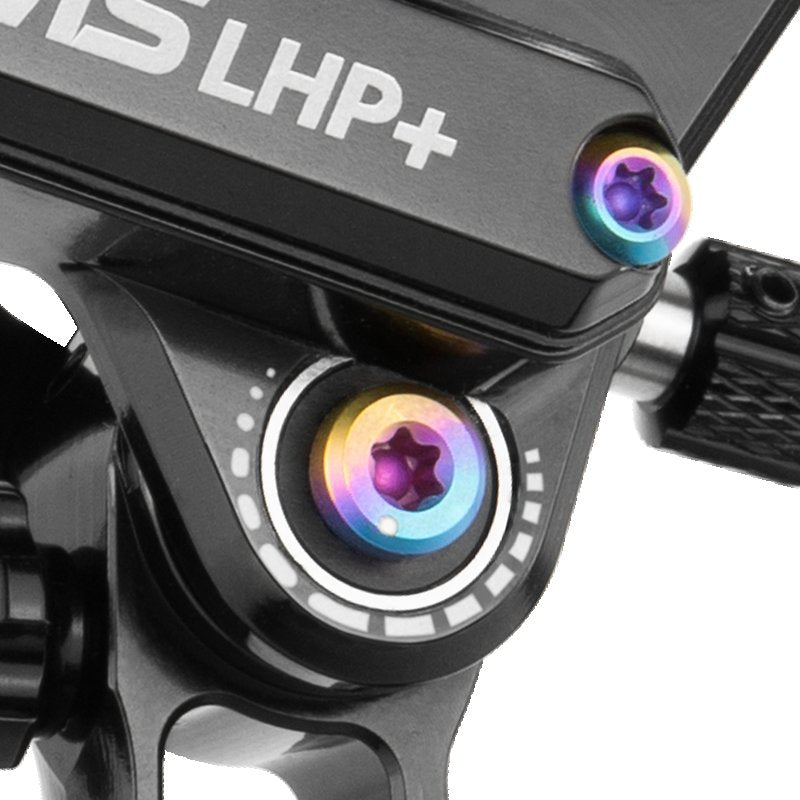

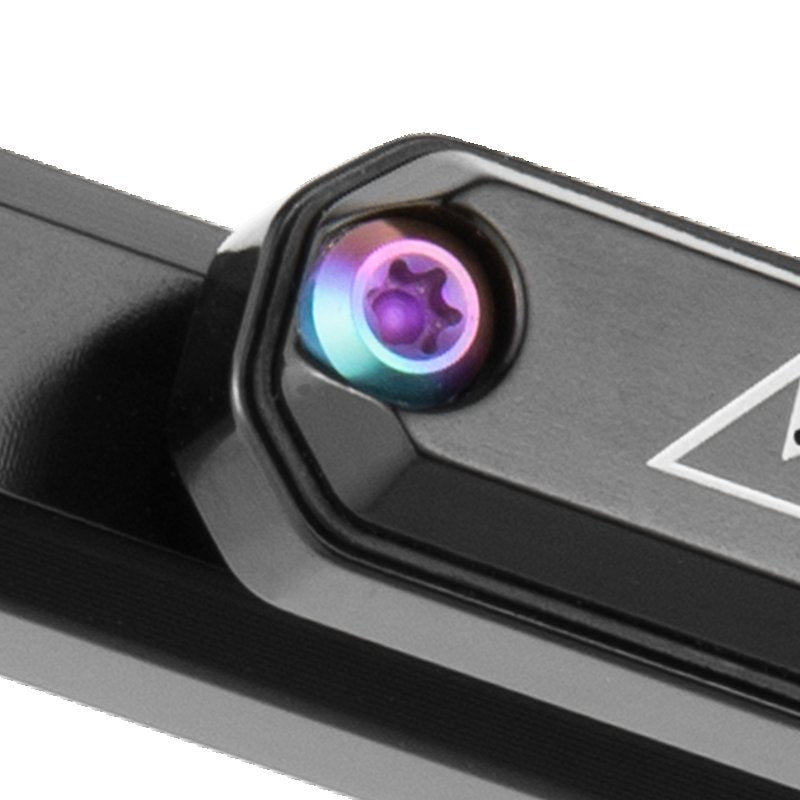

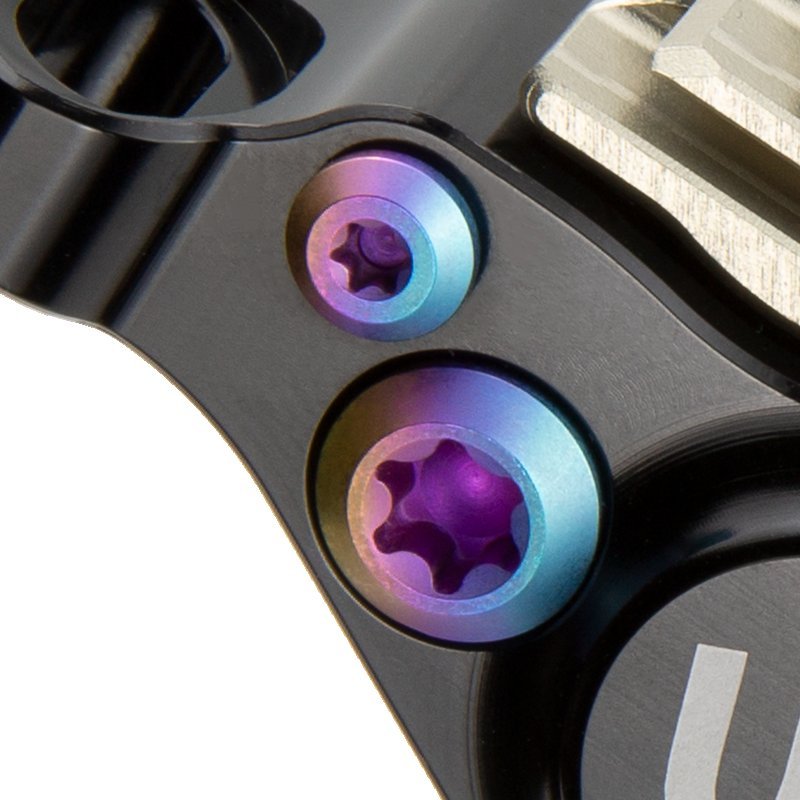

Bolts: Lewis Titanium Bolt Upgrade Kit (saves 31 grams)

Specifications

Weight: complete front and rear set - 489g (without oil hose and brake pads)
Brake Pad - Lewis LP-37, LT-37, Hope Tech 4 V4 Pads
Oil Type - Mineral oil
Rotors size - Recommended Lewis 2.3mm thick rotors 180mm to 223mm diameter
Compatible with 2.0mm to 2.5mm thick rotors 180 mm | 203 mm | 223 mm
Adjustable Leverage Ratio - 1.5mm Allen Key needed to loosen set screws

Lever Body

CNC 7075-T6 Aluminum
Body Finish - Black, Silver, Black & Silver
Clamp Color - Black, Silver
Clamp Type - 2 Piece Bolt
Screws - Oil Slick Titanium
Adjustable lever reach - external dial, tool free
Adjustable bite point - with 2mm Allen key (special tool provided)

Lever

Material CNC 7075-T6 Aluminum
Colors - Black, Silver, Black & Silver
Type - 1 or 2 Fingers

Caliper

Material - CNC 7075T6 Black, Silver, Black & Silver, customized colors
Post mount
Pistons - 4 x 17mm stainless steel Pistons with insulation layer
Bolts - Stainless Steel

Hose

Outside Diameter 5mm, Bore 2.2mm
Hose length: 90cm front / 180 cm rear
Hose - finish Silver, Braided

Which pads fit this brake?

Your LHP+ U4T takes the Hope V4 pad shape, so our Loam Goat V4 pads drop straight in. They come as 2 Pairs (4 Pads), enough for front and rear.

Three compounds, all the same shape:

Sintered, for wet, gritty, big-mileage riding.
Gravity, for steep, hot, hard braking.
Trail, quieter for everyday riding.

Pick your compound and add a set further down this page, so your spares arrive with the brakes.

Install difficulty & what you'll need

Recommended: Bike shop install, or experienced DIYer who's bled hydraulic brakes before. Plan a few hours for both ends.

What you'll need: A bleed kit (we sell the Lewis one), torque wrench, fresh mineral oil, isopropyl alcohol, clean rags. Frame may need new caliper adapters depending on your mount type.

If you've never bled brakes, ask your shop. This isn't the place to learn on $700+ brakes.

What's in the box

Front and rear caliper (pre-bled), matching lever and reservoir, pre-cut hydraulic hoses, mounting hardware, and pad retaining bolts.

Pads come pre-installed: TP-37 sintered on most sets (LHT uses TP-40, AX uses EP-44). Rotors and frame adapters sold separately.

Running Hope brakes? TP-37 is the compound equivalent of Hope E4. TP-40 is the equivalent of Hope V4. The Lewis calipers physically fit Hope pads too if you've already got a stash.

Will these fit my bike?

These are post mount calipers. Check what mount your frame uses (IS or PM). If you're not sure, send us a photo of your current caliper at hello@loamgoat.com and we'll confirm.

Compatible rotor sizes: 180mm to 223mm. We carry matching Lewis Heavy Duty Rotors.

Manuals & downloads

Lewis LHP+ U4 User Manual

Warranty & returns

3-year warranty on manufacturing defects. Crashes aren't covered, but we stock spare parts and lever assemblies so you can repair without replacing the set.

60-Day Returns: unused, un-installed sets in their original packaging can be returned within 60 days for a full refund. You cover return shipping, and there is no restocking fee.

Once you've bled them they cannot be returned, but the 3-year warranty still covers any manufacturing defect.

Shipping info

Pre-order: ships from BC with free tracked shipping.

View full details

🎁 This order qualifies for a free Shuttle Wrap. Claim it in your cart.

🛡️

100% Fit Guarantee

Wrong pads? We'll exchange them free. No questions asked. Learn more

🚚

Canada Shipping
Free $100+

⏳

Special Order
Ships When Available

🛠️

3-Year
Warranty

🇨🇦

Ships from
BC, Canada

Secure Checkout

Pads that fit

Add the right pads now

Your LHP+ U4T takes the Hope V4 pad shape.

In the box: a free Loam Goat Shuttle Wrap ($9.95 value), packed with every Lewis brake set. Nothing to add to your cart.

Hope V4 disc brake pads | 2 Pairs (4 Pads)

How this compares

Lewis brake sets at a glance. Your selection is highlighted.

	AE Axial Cylinder 4 Pistons Hydraulic Disc Brake Set $349	LH4 Axial Cylinder 4 Pistons Hydraulic Disc Brake Set $469	LHP+ U4 4-Piston Hydraulic Disc Brake Set $674	LHT Ultimate 4-Piston Disc Brakes (Front + Rear) $739	AX 4-Piston Disc Brake Set $810
Best for	Enduro/DH, firm lever feel	All-mountain, progressive feel	Enduro/DH, heat management	Premium DH, Ti hardware + Ti pistons	DH, e-MTB, racing
Pistons	2 × 14mm + 2 × 17mm	2 × 14mm + 2 × 17mm	4 × 17mm	4 × 17mm Ti+Ceramic	2 × 18mm + 2 × 20mm
Weight (set)	550g	552g	648g	546g	800g
Cooling fins	—	—	✓	—	✓
Bite point adj.	—	✓	✓	✓	✓
Pads	TP-37 (≡ Hope E4), LP-37	TP-37 (≡ Hope E4), LP-37	TP-37 (≡ Hope E4), LP-37, Hope V4	TP-40 (≡ Hope V4), LP-40	EP-44, VP-40
	View →	View →	View →	View →	View →
